Features

RF Power: 6, 10, 25 and 50 W power variants

Channel spacing: 25 and 8.33 kHz

Frequency range: 118.000-136.990 MHz

Power supply 100-230 VAC or 24 VDC (battery option)

LEDs for operating status indication

Direct or remote operation

Radio over IP operation (RoIP)

Protected against stuck PTT

Protected against short circuit on the PTT line

Protected against antenna mismatch Maintenance-free

Compliant with ETSI standards and type approved for ATM applications

Downloads

Interested in this product?

contact us >

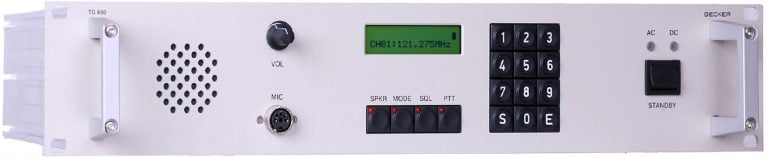

TG660 VHF Ground Station

  • Radio over IP capabilities
  • 1 baseline, 4 power variants
  • Reduced installation footprint
  • Robust and field-proven design
  • Maintenance-free
  • User-friendly operation, all main components located on the front panel
  • Emergency power supply via internal battery (option for low power variants)
  • Remote control and monitoring capabilities via web browser

Field-proven and versatile VHF base station suited for air traffic control and mission critical applications. Fitted with Radio over IP capability and available in 6 to 50W RF power output configurations, the TG660 radio station provides a cost-efficient and durable design.

Air traffic control services depend on reliable and robust communication systems to ensure safe flight operations. With the TG660 VHF Bases Station, Becker offers an efficient product for air traffic management applications intended to respond to the latest requirements and the needs of ATM operators.
The TG660 provides from 6 to 50W RF output power depending on the versions, and is suitable for medium range communication requirements. It can be installed in 19″ racks or in ATC desks as a main or as a standby transceiver for ground to air communication purposes.
